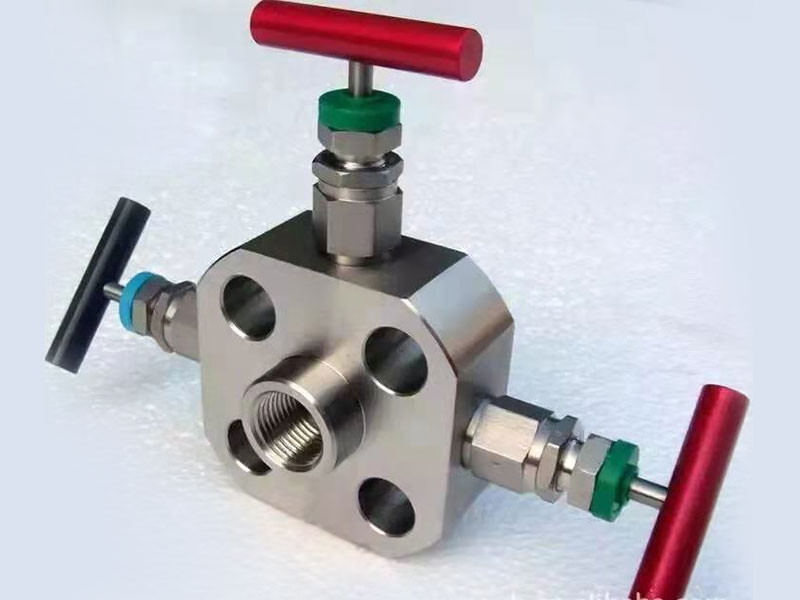

EDC valve group
Purpose:
This valve is specially used for instrument detection and adjustment in instrument pipeline with nominal pressure PN ≤ 32Mpa and working temperature ≤ 425 ℃.
Installation:
This structure can be directly connected with the corresponding thread of the pipeline and directly flange connected with the transmitter. It can also be customized with nut nozzle and directly welded for installation.
Performance parameters:
Nominal pressure (PN) | 6.4~32MPa |
Test pressure (PS) | 1.5PN |
Working medium | Gas and liquid |
Host material | Stainless steel, molybdenum and titanium dioxide |
- Previous：FL group valve

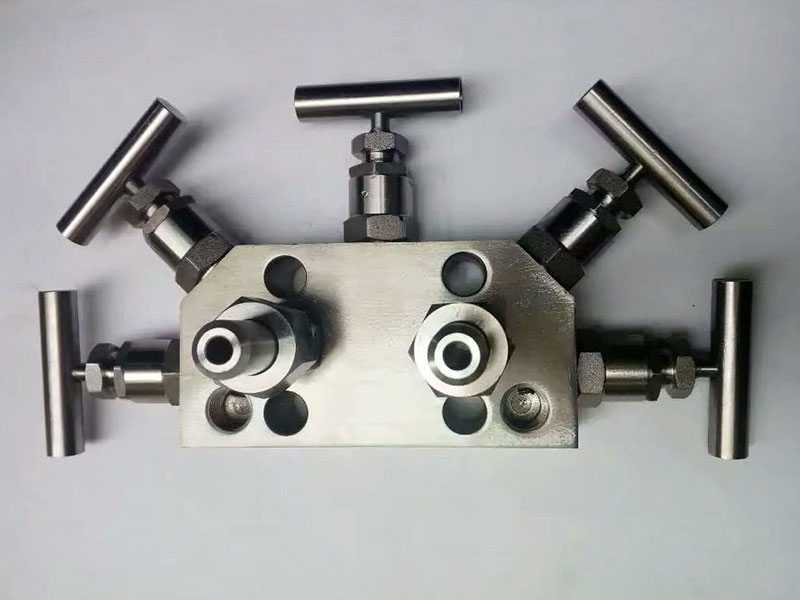

- Next：Five valve manifold
